Blasting equipment Ibix dry

The IBIX dry system is entirely made of aluminum, it is handy, easy to transport, extremely versatile and can be easily used by just one operator.

The choice of the most appropriate blasting material and the adjustable blasting pressure make the IBIX system multipurpose and capable of providing unequalled performances in innumerable fields of application, all in full observance of the operator safety and the environmental safeguard standards.

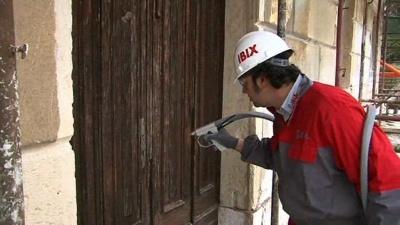

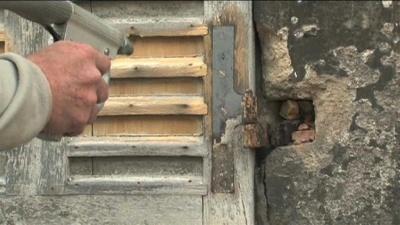

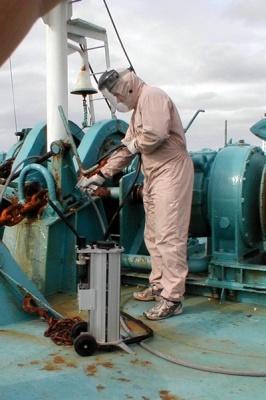

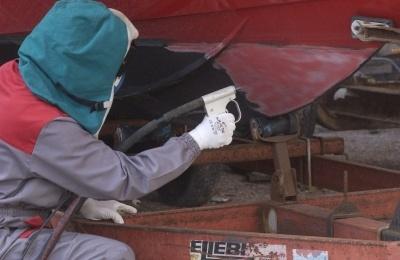

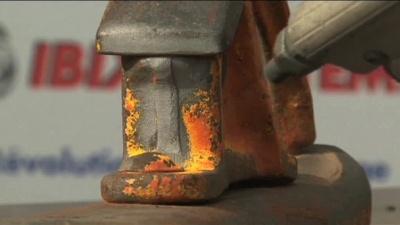

The ecological dry system is ideal to treat wood and porous stones on which using water is not recommended; it can successfully be used in fields where a particularly strong abrasive power is required, such as paint removal on metal and boats.

Technical Feautures Dry

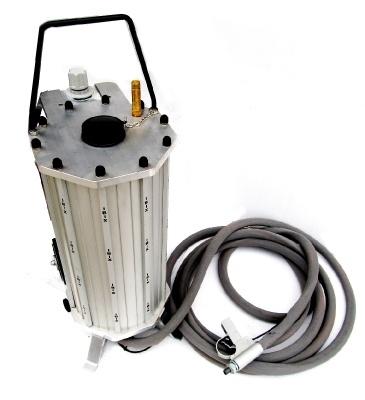

ibix 9 secco

  • Technical Feautures Dry 9:
  • Pressure adjustable from 0.2 to 7,5 bar (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38 μm up to 600 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 670 lt/min
  • Standard nozzle: internal Ø 3 mm cylindrical
  • Other applicable nozzles: internal Ø 1,5-2-2,5- 1,5-2-2,5-3 L.115-3,5-4-4,5 mm cylindrical and Ø int. 2,5-4-4 L.115 mm Venturi
  • Blasting medium - air hose with protective sheath: 6 m
  • Blasting medium tank capacity: 9 l
  • Max height: 715 mm
  • Max width: 325 mm
  • Max lenght: 350 mm
  • Weight (with empty tank): 18 kg

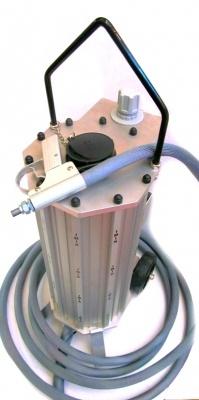

ibix 25 secco

  • Technical Feautures Dry 25:
  • Pressure adjustable from 0.2 to 7,5 bar (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38 μm up to 1400 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 1900 l/min
  • Standard nozzle: internal Ø 5,5 mmcylindrical
  • Other applicable nozzles: internal Ø 1,5-2-2,5-3-3 L.115-3,5-4-4,5-5,5 L.115-7 mmcylindrical and Ø int. 2,5-4-4 L.115-5-6-6 L.115 mm Venturi
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 25 l
  • Max height: 990 mm
  • Max width: 316 mm
  • Max lenght: 426 mm
  • Weight (with empty tank): 30 kg

ibix 40 secco

  • Technical Feautures Dry 40:
  • Pressure adjustable from 0.2 to 7,5 bar (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38 μm up to 1400 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 5000 lt/min
  • Standard nozzle: internal Ø 10 mm cylindrical
  • Other applicable nozzles: internal Ø 5,5-7-8-12-15 mmcylindrical and Ø int. 5-6 mm Venturi
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 40 lt
  • Max height: 1100 mm
  • Max width: 355 mm
  • Max lenght: 520 mm
  • Weight (with empty tank): 48 kg

ibix 60 secco

  • Technical Feautures Dry 60:
  • Pressure adjustable from 0.2 to 7,5 bar (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38 μm up to 1800 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 5000 l/min
  • Standard nozzle: internal Ø 10 mm cylindrical
  • Other applicable nozzles: internal Ø 5,5-7-8-12-15 mmcylindrical and Ø int. 5-6 mm Venturi
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 60 l
  • Max height: 1300 mm
  • Max width: 500 mm
  • Max lenght: 570 mm
  • Weight (with empty tank): 52 kg
